Description
| Specification | Value |
|---|---|
| Design | Three-way bass reflex |
| HF Driver | 19 mm (0.75 in.) vented aluminium dome with MAT |
| MF Driver | 100 mm (4 in.) aluminium cone |
| LF Driver | 2 × 165 mm (6.5 in.) hybrid aluminium cone |
| Frequency Range (-6dB) | 39 Hz – 20 kHz |
| Typical In-Room Bass Response (-6dB) | 28 Hz |
| Frequency Response (±3dB) | 46 Hz – 20 kHz |
| Crossover Frequency | 440 Hz, 2.3 kHz |
| Amplifier Requirements | 15 – 200 W |
| Sensitivity (2.83V/1m) | 87 dB |
| Harmonic Distortion (90dB, 1m) | <2% above 35 Hz, <1% from 38 Hz – 20 kHz |
| Maximum Output | 110 dB |
| Impedance | 4 Ω (minimum 3.2 Ω) |
| Weight | 18.4 kg (40.6 lbs.) |
| Dimensions (H × W × D) | 950 × 210 × 315 mm (37.4 × 8.3 × 12.4 in.) |
| Dimensions with Plinth (H × W × D) | 1001 × 317 × 315 mm (39.4 × 12.5 × 12.4 in.) |

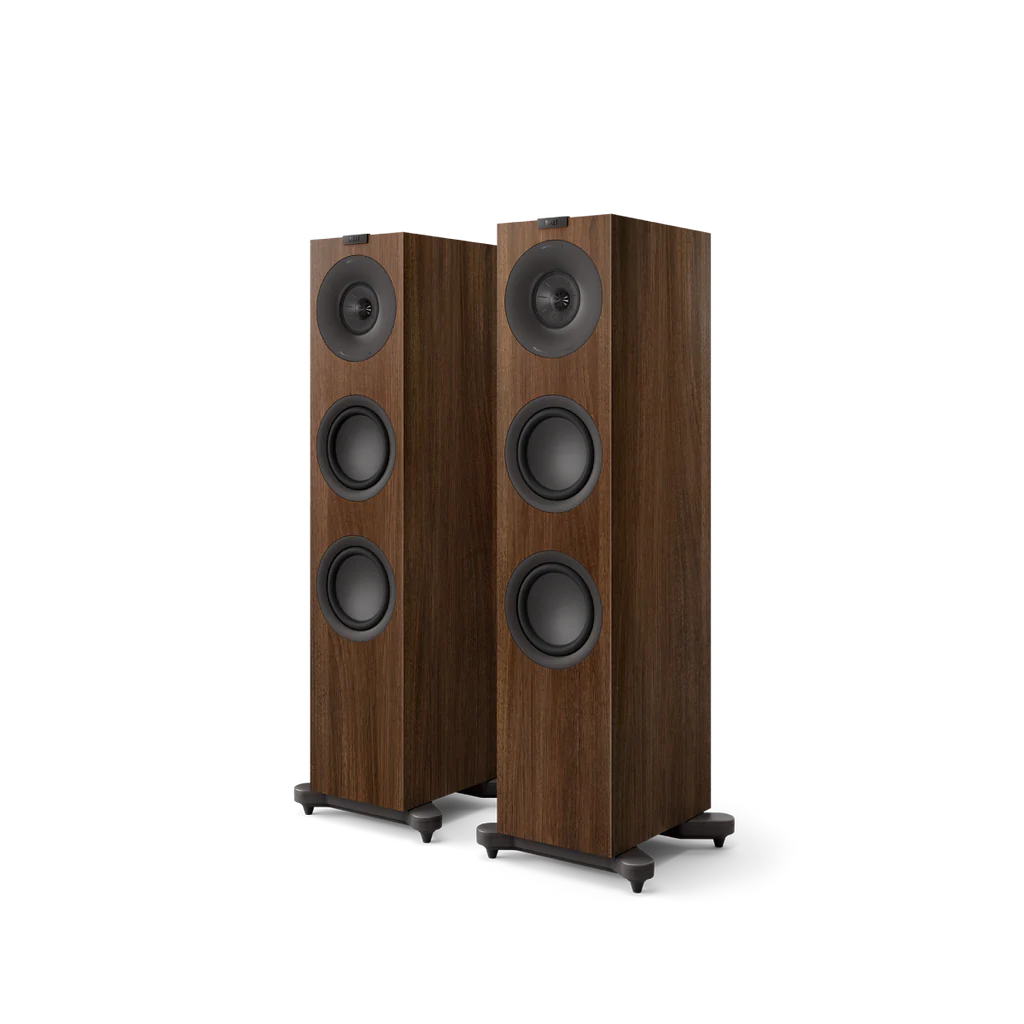

| Finishes | Satin Black, Satin White, Walnut |
| Downloads | Q Series User Manual, Q Series Information Sheet, Q Series White Paper |
